Photogrammetry is a technique of obtaining reliable measurements and information about physical objects and the environment through the recording, measuring, and interpreting of photographic images. It is often used for creating maps, models, or 3D reconstructions. It involves taking multiple photographs of an object or area from different angles and then using software to analyze the photos and extract spatial information.
Photogrammetry Technique in Implant Dentistry
In implant dentistry, photogrammetry is a technique that uses photographic images to create detailed and accurate 3D models of a patient’s oral structures. This technique involves capturing multiple overlapping photographs of the dental area from various angles and then processing these images with specialized software to reconstruct a precise digital model of the teeth, gums, and surrounding tissues. Photogrammetry is used to enhance the precision of planning and placing dental implants.
How Photogrammetry Works in Implant Dentistry
Photogrammetry has gained popularity in implant dentistry due to its ability to provide precise measurements without the need for traditional impression materials, which can introduce inaccuracies.
The process in which photogrammetry works in implant dentistry includes:
Step 1: Image Capture
The process begins by capturing high-resolution photographs from multiple angles of the patient’s oral cavity, focusing on the area where the implants are placed. This is typically done using an intraoral camera or specialized camera system to capture detailed images of the teeth, gums, and surrounding tissues.
Step 2: Reference Points

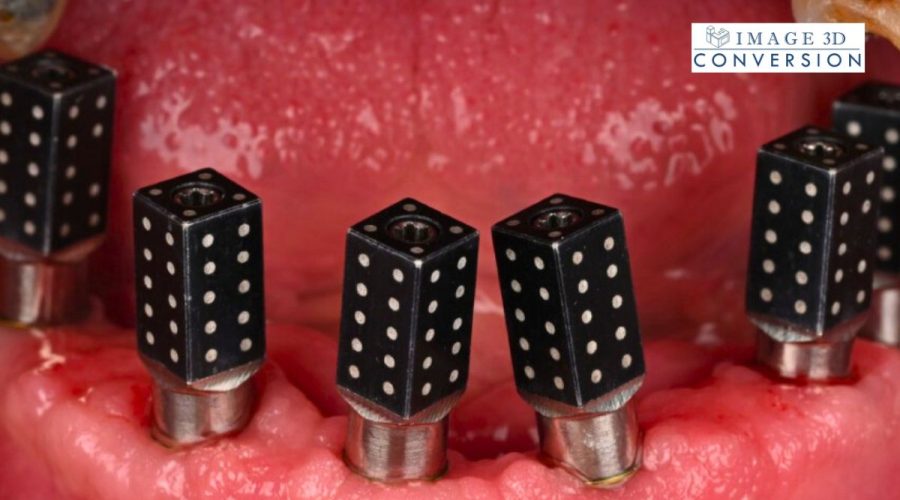

During the image capture, reference points—often in the form of scan bodies—are attached to the implants. These points serve as fixed markers that help in accurately triangulating the position of each implant.
Step 3: Data Processing
The captured images are processed using photogrammetry software. The software analyzes the photographs to identify the common reference points and uses these images to construct a detailed 3D model of the oral structures.
Step 4: 3D Model Creation
From the processed data, a precise 3D model of the implant positions is generated. The 3D model is used to plan the exact location, angle, and depth for the implant. This model can then be used for planning the placement of prosthetics, ensuring a better fit and alignment.
Advantages of Photogrammetry in Implant Dentistry
Photogrammetry offers several advantages over conventional impression techniques for capturing implant positions in implant dentistry:
1. Accuracy
Photogrammetry provides highly accurate 3D models of the patient’s oral structures, including teeth, gums, and bone. This detailed representation allows for precise planning and placement of dental implants. It also allows for precise measurement of the implant’s location, angle, and depth, which can lead to better implant stability and function.
2. Efficiency and Time Savings
The photogrammetry process is relatively quick compared to some traditional methods, streamlining the overall workflow. Digital data can be instantly transferred to the lab for prosthesis fabrication, streamlining the workflow
3. Patient Comfort
Unlike traditional impression methods that can be uncomfortable for patients, photogrammetry is a non-invasive technique that captures detailed images without the need for physical molds. It allows the patient total freedom of movement during the scanning process. Detailed visualizations make it easier for patients to grasp the proposed treatments, leading to more informed consent.
4. Reduced Error
By capturing high-resolution images extraorally, photogrammetry minimizes inaccuracy and error compared to traditional impressions.
5. Integration with Digital Technologies
Photogrammetry data can be seamlessly integrated with CAD/CAM systems for designing and manufacturing custom implants and prosthetics. This also makes it easy to store, retrieve, and share patient data, facilitating better record-keeping and collaboration.
Applications of Photogrammetry in Implant Dentistry
Photogrammetry is increasingly utilized in implant dentistry for various applications, enhancing the precision and efficiency of dental procedures.
Key applications include:
1. Accurate Registration of Implant Positions
Photogrammetry allows practitioners to capture the exact three-dimensional positions of dental implants. This enables detailed planning of implant locations, angles, and depths. This precision is crucial for ensuring implants are placed in optimal positions for stability and functionality. It also allows for the simulation of implant placement and prosthetic fitting before the actual procedure, helping to predict and address potential issues.
2. Full-Arch Implant Restorations
The photogrammetry technique is particularly beneficial for full-arch implant restorations, where multiple implants need to be accurately positioned. This technology provides a reliable method to record the spatial arrangement of these implants, ensuring that the resulting prosthesis fits correctly and functions well.
3. Integration with Digital Workflows
Photogrammetry can be integrated into digital workflows that combine intraoral scanning and photogrammetric data. This technology allows for the capturing of both implant positions and soft tissue geometry, resulting in a comprehensive digital model that enhances the accuracy of restorations. Photogrammetry data integrates seamlessly with digital record-keeping systems, allowing for efficient storage, retrieval, and sharing of patient information.
4. Research and Development
Photogrammetry is also used in research settings to compare the accuracy of different impression techniques and to evaluate new methods in implant dentistry. It also supports research into new techniques and technologies in implant dentistry by providing accurate and detailed data for experimentation and development.
Challenges and Limitations of Photogrammetry
While photogrammetry offers numerous advantages, it also faces certain challenges and limitations that should be considered:
1. Image Quality and Consistency
Photogrammetry relies on high-quality images for accurate 3D reconstruction. Poor image quality can result in inaccuracies of the 3D model of the patient’s oral anatomy.
2. Data Processing Requirements
Handling large datasets from photogrammetry can be computationally intensive and time-consuming. It requires robust hardware and software to process the images efficiently and can be challenging.
3. Accuracy and Precision Limitations
The precision of the 3D model depends on factors like camera calibration, image resolution, and measurement of control points.
4. Expertise and Skill
Applying photogrammetry effectively requires specialized knowledge and skills in both capturing images and processing them. Factors like camera settings, image overlap, and processing parameters need to be optimized for accurate results.
5. Patient Factors
Any movement by the patient during image capture can result in distortions or artifacts in the 3D model, affecting the accuracy of implant planning.
Future of Photogrammetry in Dentistry
The future of photogrammetry in dentistry holds great promise, with advancements in technology poised to enhance its applications, accuracy, and overall impact on dental practice. Some key trends and developments that are likely to shape the future of photogrammetry in dentistry includes:
1. Enhanced Accuracy and Precision
Technological advancements are expected to improve the accuracy and precision of photogrammetry systems. Innovations in camera technology will lead to even higher resolution and more accurate images, improving the quality of 3D models and the precision of implant placement.
2. Integration with Artificial Intelligence (AI) and Augmented Reality (AR)
The integration of Augmented Reality (AR) and Artificial Intelligence (AI) in photogrammetry applications is set to revolutionize dental practices. VR will enhance the visualization of 3D models, providing immersive and interactive ways to plan and simulate dental procedures. AI can enhance image analysis and automate the modeling process.
3. Streamlined Digital Workflows
As photogrammetry technology matures, it will become increasingly integrated into comprehensive digital workflows. This includes seamless combinations with intraoral scanning, allowing for the capture of both implant positions and soft tissue geometry, leading to more holistic treatment planning and execution. It will also reduce the need for traditional impression methods and integrate smoothly with other digital tools and systems.
4. Increased Adoption in Clinical Practice
Photogrammetry will be used for a wider range of diagnostic applications, including detailed analysis of dental and oral pathology, and monitoring treatment progress. As dental professionals become more familiar with the technology and its benefits, photogrammetry may become a standard practice in implant dentistry.
5. Cost-Effectiveness
As the technology becomes more advanced and widespread, the costs of photogrammetry tools and software is likely to decrease. This will make the technology more accessible to a broader range of dental practices, facilitating its integration into routine procedures.
6. Expanded Applications
Beyond implant dentistry, photogrammetry is likely to find applications in other areas of dentistry, such as orthodontics, prosthodontics, and cosmetic dentistry. Its ability to create precise 3D models can enhance treatment planning and patient outcomes across various dental disciplines.
7. Research and Development
Continued research will focus on overcoming current limitations of photogrammetry, such as capturing soft tissue details and improving the robustness of the technology in challenging clinical conditions.
Conclusion
Photogrammetry represents a transformative technology in implant dentistry, offering significant advancements over traditional methods. Its ability to provide detailed visualizations and precise measurements supports meticulous planning and execution of implant placements, leading to improved outcomes and patient satisfaction.
Looking to the future, photogrammetry is poised to benefit from continued technological advancements. Innovations in camera technology, artificial intelligence, and augmented reality are set to further enhance its accuracy and integration into digital workflows. Photogrammetry is expected to become more accessible and widely adopted, not only in implant dentistry but across various dental specialties.
FAQs
Photogrammetry differs from other techniques in implant dentistry in its method of capturing data, processing requirements, patient comfort, and integration with digital technologies.
No, photogrammetry is not a cost-effective solution for dental practices.
The essential equipment for photogrammetry in dentistry includes high-quality imaging equipment, appropriate software for processing, and a controlled environment to ensure accurate data capture.
